$61.20
| Actuator Type: | Piloted Solenoid |
|---|---|
| Body Material: | Die Cast Aluminum |
| Brand: | KE SMI SHOP® |
| Dimensions: | 114.9 mm L x 15.8 mm W |
| Flow Rate: | 0.9 |
| Manufacturer: | KE SMI SHOP Corporation of America |
| Media: | Air |

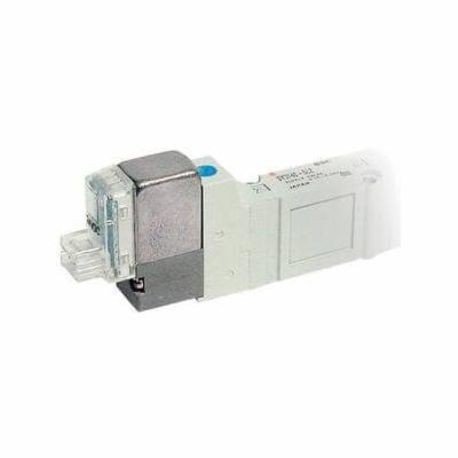

| Name: | KE SMI SHOP® SY5120-5DZ-C6 SY500 5-Port Body Ported Standard Solenoid Valve With Light/Surge Voltage Suppressor, 0.15 to 0.7 MPa Pressure, 0.9 Cv Flow Rate |
| Port Type: | Internal |
| Pressure Rating: | 0.15 to 0.7 |
| Product Type: | Simple |
| Series: | SY500 |
| Softgoods Material: | Resin |
| Temperature Rating: | -10 to 50 |
| Type: | 5-Port Body Ported Standard |
| Unit Of Measure: | EA |
| UNSPSC: | 40141605 |
| Weight: | 0.35 |
